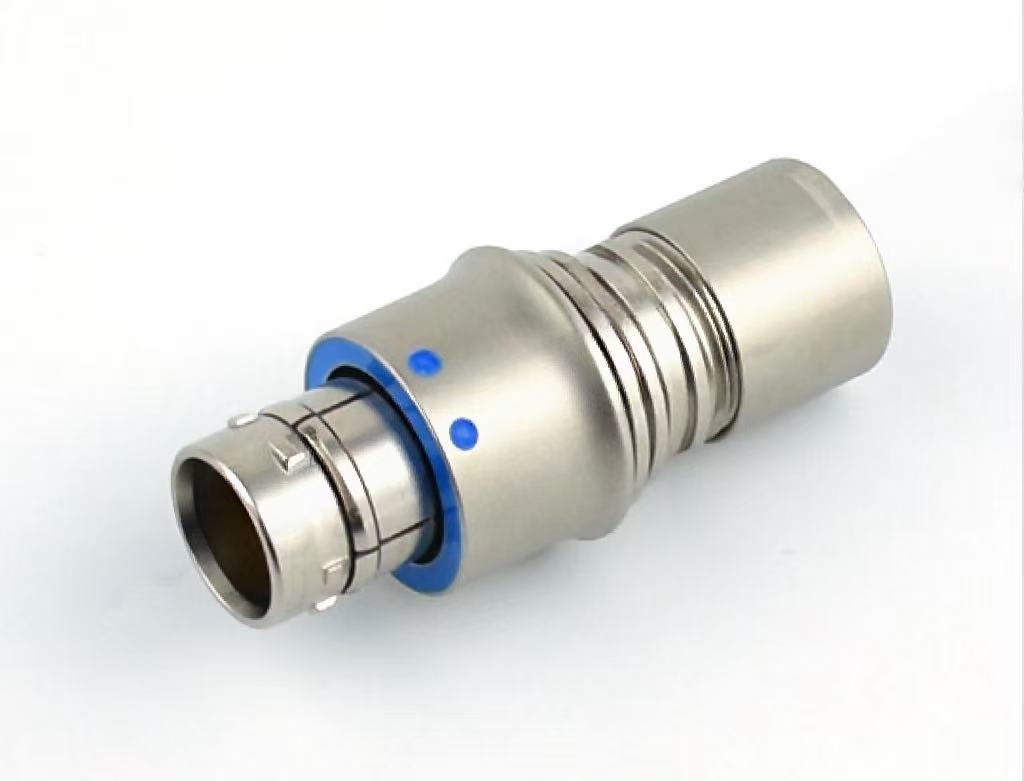

LLTFX105T02C087KN-HS

Performance parameters:

Mechanicallife:>5000 times:

Operatingtemperature:-55°C~+125°C:

Waterproof grade:lP68;

Salt spray:5%NaCl mist,aluminum

alloy 96h,copper alloy 300h;

Relative humidity:90%~95%(40±2°C);

mpact:Acceleration 2940m/s,instantaneous break <lus;Vibration:101.102 shell,sinusoidal vibration frequency10~2000Hz,acceleration 147m/s’,<lus instantaneous break;103.1031,104.105,106 shells,random vibration powerspectral density 1.0g /Hz,root mean square plant 36.6g,S1us instantaneous break;

Air leakage: when 1.0-10’ Pa pressure difference is applied atboth ends of the socket, the leakage rate is not greater than1.0Pa·cm'/s (optical fiber and radio frequency do not have airtightness);

Water pressure: The plugged connectoris immersed in 2m depthof water, after 24h,there is no water seepage at the connectorinterface,and after drying at room temperature for 30min, itsinsulation resistance should comply with the water pressureconditions in military standard 3.2.8 (except optical fiber and RFproducts).
