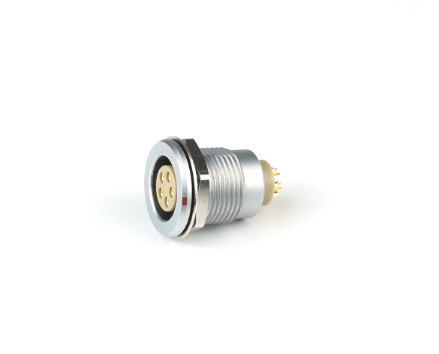

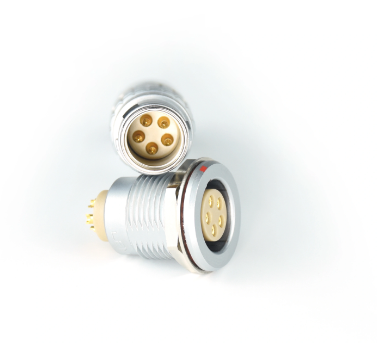

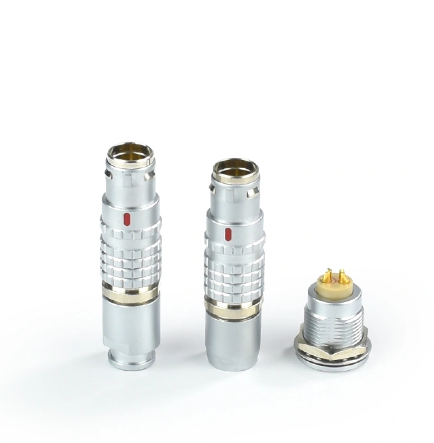

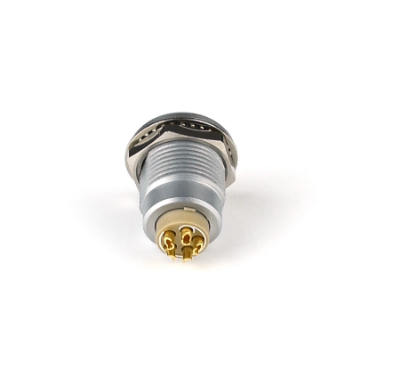

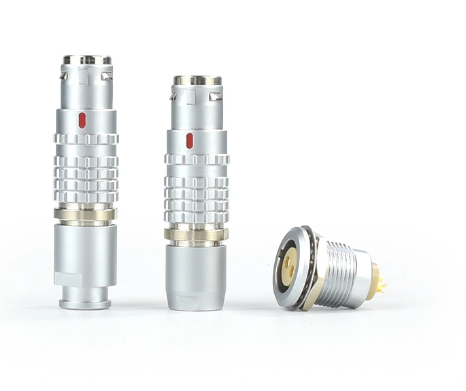

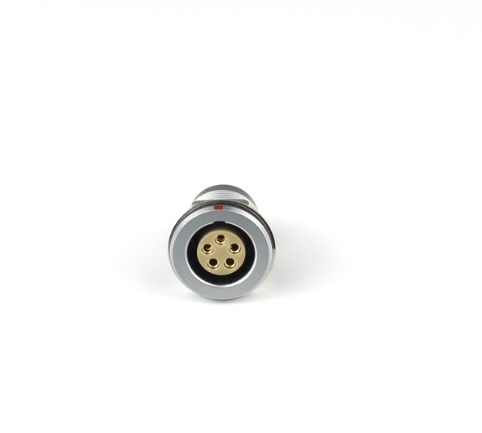

LLT FGG.3B.316.CLAD
Product Description
Electrical Parameters
- Rated current: Relies on contact piece specs and quantity. For example, in some models, small contacts carry 3A, medium ones reach 5A, and large ones handle up to 17A, meeting varied circuit load demands.
- Contact resistance: Begins extremely low (typically ≤5mΩ), minimizing energy loss in signal transmission and preserving integrity. After 500+ insertion/withdrawal cycles (standard lifespan test), resistance remains ≤10mΩ, ensuring stable connections.
- Insulation resistance: Surpasses 5000MΩ under standard conditions, effectively preventing current leakage and cross-circuit interference for independent, normal circuit function.
- Withstand voltage: Manages 1000V without breakdown under standard conditions; 250V in low pressure; 500V in humidity, exhibiting superior insulation and voltage resistance.
Mechanical Parameters
- Mechanical life: Tested to withstand at least 500 insertions/withdrawals. Even with frequent use, it maintains reliable connectivity, reducing problems like poor contact from repeated operations.
- Vibration performance: Endures 245m/s² acceleration in 10Hz–2000Hz sinusoidal vibration tests, ensuring stable connections and uninterrupted signals amid aircraft flight vibrations.
- Shock performance: Resists 980m/s² shock acceleration, coping with sudden impacts during takeoff, landing, and flight to keep connections stable and reliable.
Environmental Parameters
- Operating temperature: Functions reliably from -55°C (extreme cold) to 125°C (high heat), adapting to diverse geographic and flight conditions.
- Relative humidity: Performs unimpaired at 40°C with 90%–95% humidity, showing strong moisture resistance.
- Atmospheric pressure: Operates stably over 101.3kPa (standard) to 1.33Pa (high-altitude low pressure) ranges.
Electrical Parameters
- Rated current: Relies on contact piece specs and quantity. For example, in some models, small contacts carry 3A, medium ones reach 5A, and large ones handle up to 17A, meeting varied circuit load demands.
- Contact resistance: Begins extremely low (typically ≤5mΩ), minimizing energy loss in signal transmission and preserving integrity. After 500+ insertion/withdrawal cycles (standard lifespan test), resistance remains ≤10mΩ, ensuring stable connections.
- Insulation resistance: Surpasses 5000MΩ under standard conditions, effectively preventing current leakage and cross-circuit interference for independent, normal circuit function.
- Withstand voltage: Manages 1000V without breakdown under standard conditions; 250V in low pressure; 500V in humidity, exhibiting superior insulation and voltage resistance.
Mechanical Parameters
- Mechanical life: Tested to withstand at least 500 insertions/withdrawals. Even with frequent use, it maintains reliable connectivity, reducing problems like poor contact from repeated operations.
- Vibration performance: Endures 245m/s² acceleration in 10Hz–2000Hz sinusoidal vibration tests, ensuring stable connections and uninterrupted signals amid aircraft flight vibrations.
- Shock performance: Resists 980m/s² shock acceleration, coping with sudden impacts during takeoff, landing, and flight to keep connections stable and reliable.
Environmental Parameters
- Operating temperature: Functions reliably from -55°C (extreme cold) to 125°C (high heat), adapting to diverse geographic and flight conditions.
- Relative humidity: Performs unimpaired at 40°C with 90%–95% humidity, showing strong moisture resistance.
- Atmospheric pressure: Operates stably over 101.3kPa (standard) to 1.33Pa (high-altitude low pressure) ranges.
Previous: LLT FGG.3B.309.CLAD
Next: LLT FGG.3B.324.CLAD
Product Details
Product drawings
no data
